Inconsistent radius floor fillet DFM check
Inconsistent radius floor fillet overview

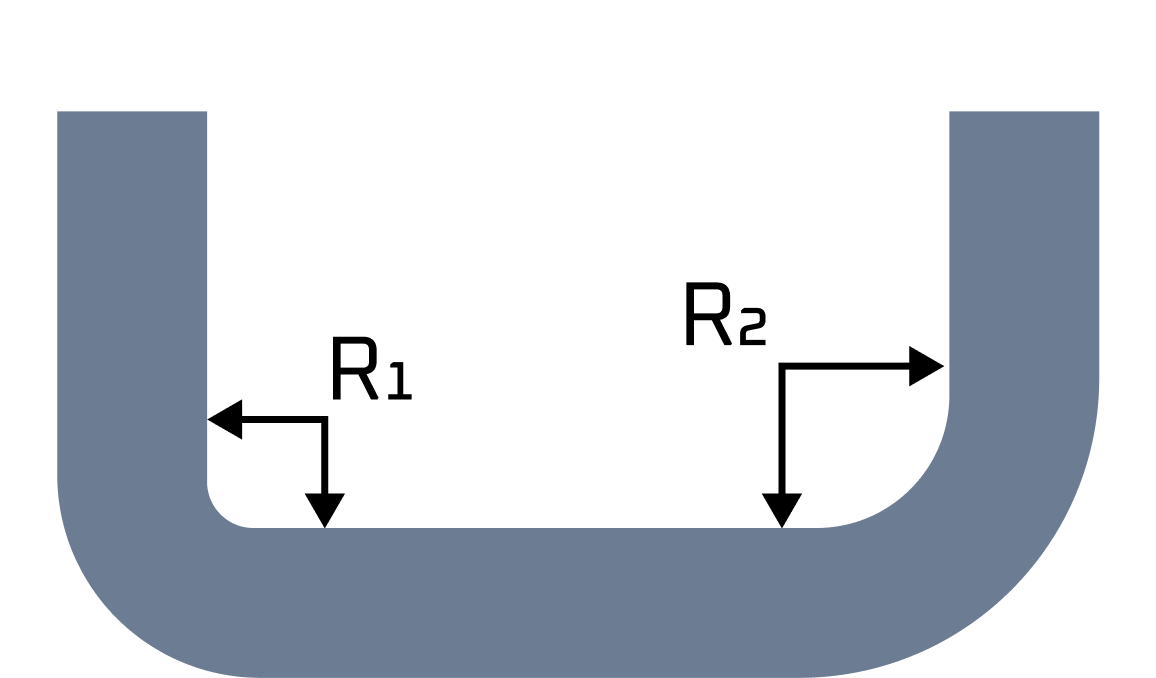

In CNC milling design, inconsistent floor fillet radii refer to the situation where the size and shape of the fillets on a part are not uniform.
Inconsistent radii can weaken the workpiece by creating stress concentration points, causing unexpected failures and compromising the overall strength of the part. Consequently, this can lead to increased manufacturing costs, inefficiencies in the production process, and potential issues during assembly or in use.
How MTK detects inconsistent radius floor fillets
MTK automatically analyzes B-Rep CAD models for inconsistent radius floor fillets. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the inconsistent radius floor fillet DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
