Irregular screw boss core diameter DFM check

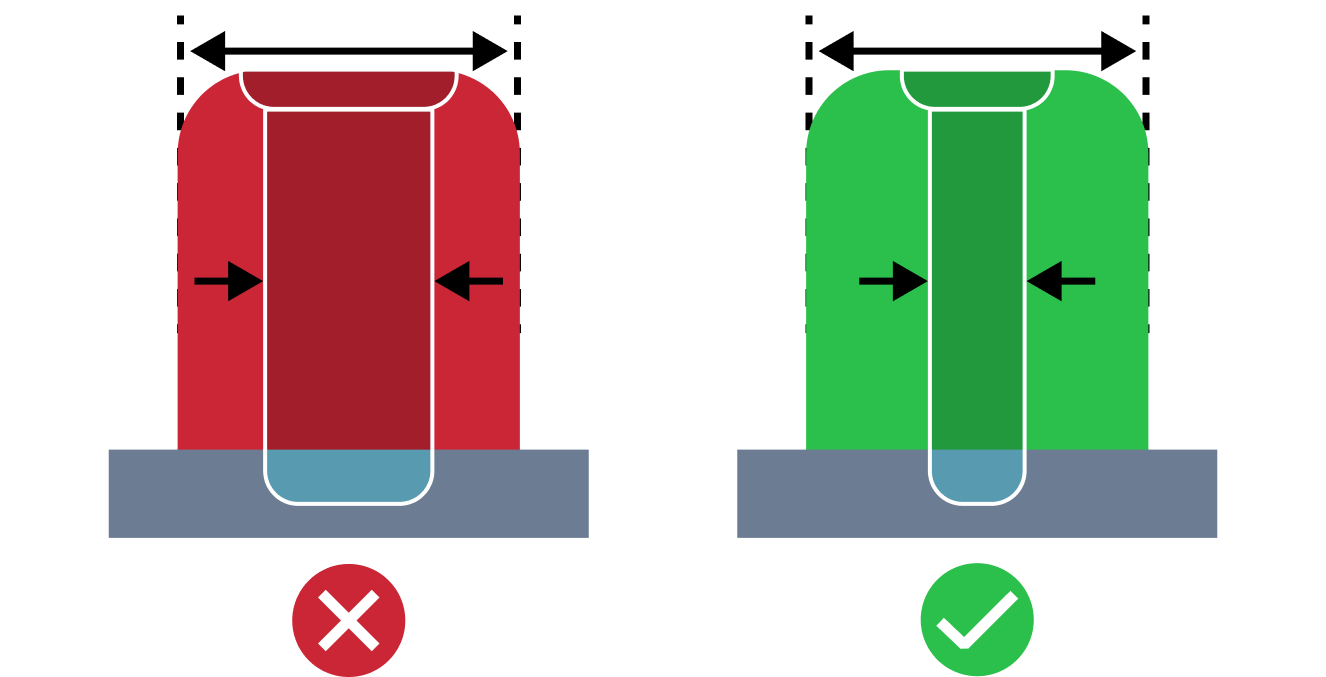

The irregular screw boss core hole diameter issue refers to a situation where the screw boss core hole diameter is too big or small compared to the outer diameter. Proper diameter value is required to mitigate potential stress failures or flow issues caused by thick regions.

Irregular screw boss core diameter detection conditions

MTK identifies this issue when the following condition is met:

where:

• $D_h$ — analyzed boss core hole diameter
• $D_b$ — analyzed boss outer diameter
• $R_{min}$ — minimum boss core hole to outer diameter ratio
• $R_{max}$ — maximum boss core hole to outer diameter ratio

How MTK detects irregular screw boss core diameters

MTK automatically analyzes B-Rep CAD models for irregular screw boss core diameters. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.

Documentation and API reference

Detailed API reference for the irregular screw boss core diameter DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.

•  Irregular screw boss core diameter DFM check API reference
•  Injection molding DFM API overview
•  Injection molding DFM analyzer example
