Large difference in regions size in pocket DFM check
Large difference in regions size in pocket overview

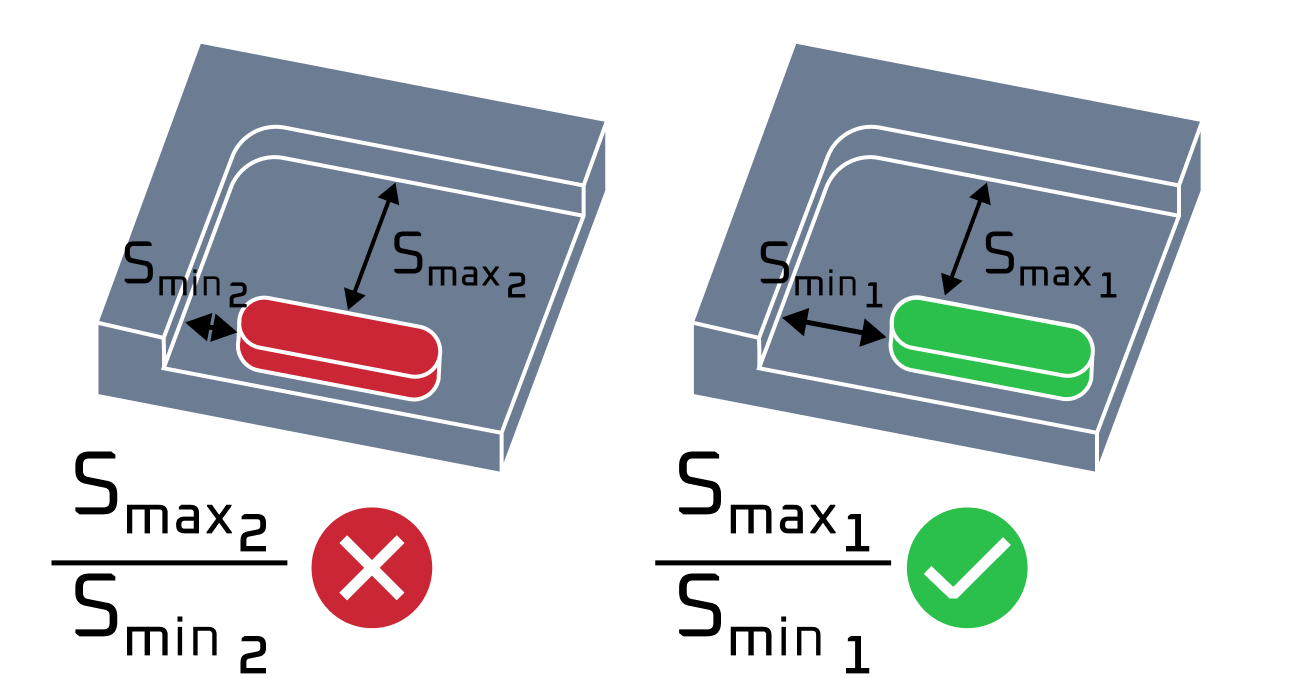

A large difference in region size in a pocket CNC machining milling design can impact the machining process in terms of the required tool selection, appropriate cutting parameters, required material removal, and tool path optimization.
Large difference in regions size in pocket detection conditions
MTK identifies this issue when the following condition is met:
where:
- — actual ratio of maximum to minimum sizes
- — expected maximum ratio of maximum to minimum sizes
How MTK detects large differences in regions size in pockets
MTK automatically analyzes B-Rep CAD models for large differences in regions size in pockets. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the large difference in regions size in pocket DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
