Large turned part DFM check
Large turned part overview

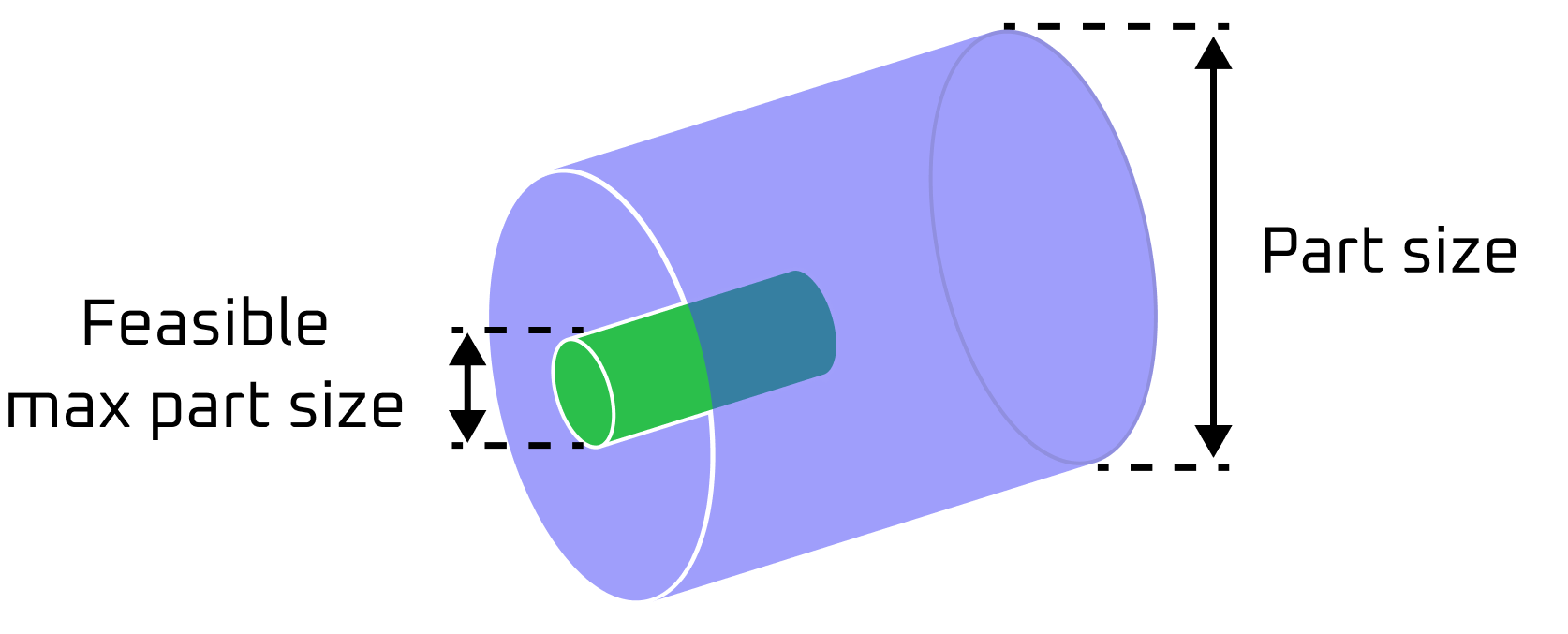

A large turned part issue in CNC machining turning design refers to the difficulties faced in producing oversized components in a turning operation. These parts require specialized equipment and expertise, as well as careful consideration of factors such as stability, tool selection, and programming.
Some common challenges include maintaining consistency of material removal, ensuring proper chip evacuation, and minimizing vibration and deflection.
Large turned part detection conditions
MTK identifies this issue when the following conditions are met:
where:
- — actual turned part length
- — actual turned part radius
- — expected maximum turned part length
- — expected maximum turned part radius
How MTK detects large turned parts
MTK automatically analyzes B-Rep CAD models for large turned parts. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the large turned part DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
