Non standard drill point angle DFM check
Non standard drill point angle overview

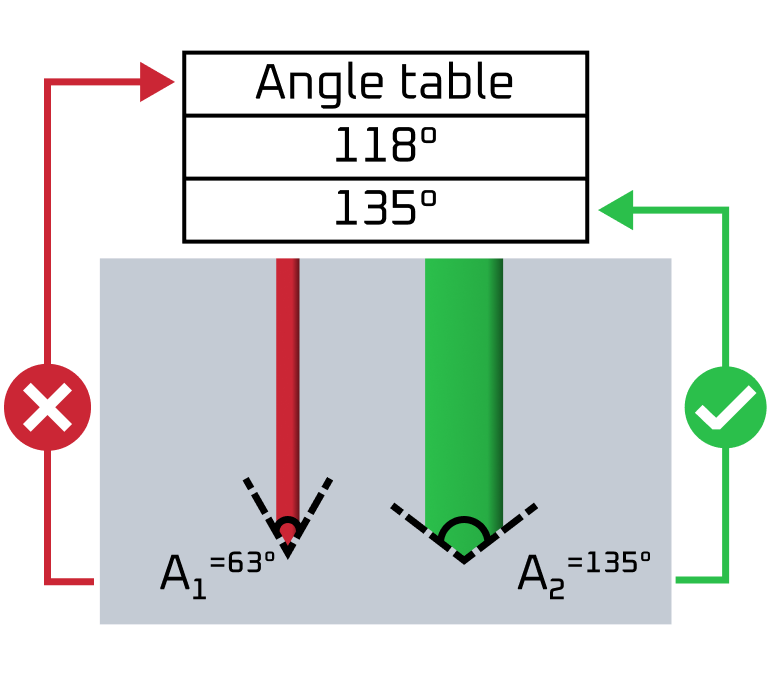

In CNC machining drilling design, non standard drill point angle blind hole issue refers to the situation where the required angle in the design is not a standard size.
The standard angle is important for achieving optimal performance and accuracy in drilling operations. A standard angle is commonly used because it provides a good balance between cutting speed and chip clearance, while also minimizing the risk of drill breakage or chipping.
How MTK detects non standard drill point angles
MTK automatically analyzes B-Rep CAD models for non standard drill point angles. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the non standard drill point angle DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
