Non standard radius floor fillet DFM check

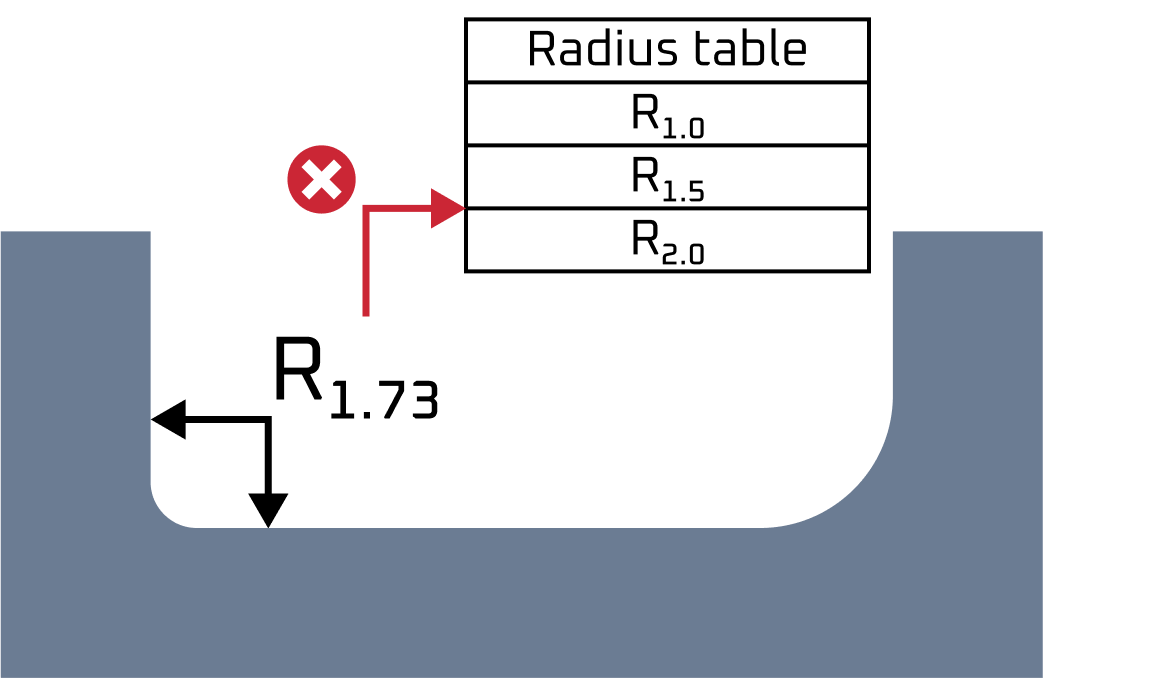

Non standard radius floor fillet overview
A non standard milled part floor radius can be problematic in CNC machining milling design due to the need for special tooling and custom grinding, which can be more expensive and limit the availability of suitable tools. Adjusting cutting parameters can also impact machining time and tool life.
Workpiece stability may be compromised due to the added complexity, which can affect surface finish if chatter or vibration occurs.
How MTK detects non standard radius floor fillets
MTK automatically analyzes B-Rep CAD models for non standard radius floor fillets. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the non standard radius floor fillet DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
