Small screw boss draft angle DFM check

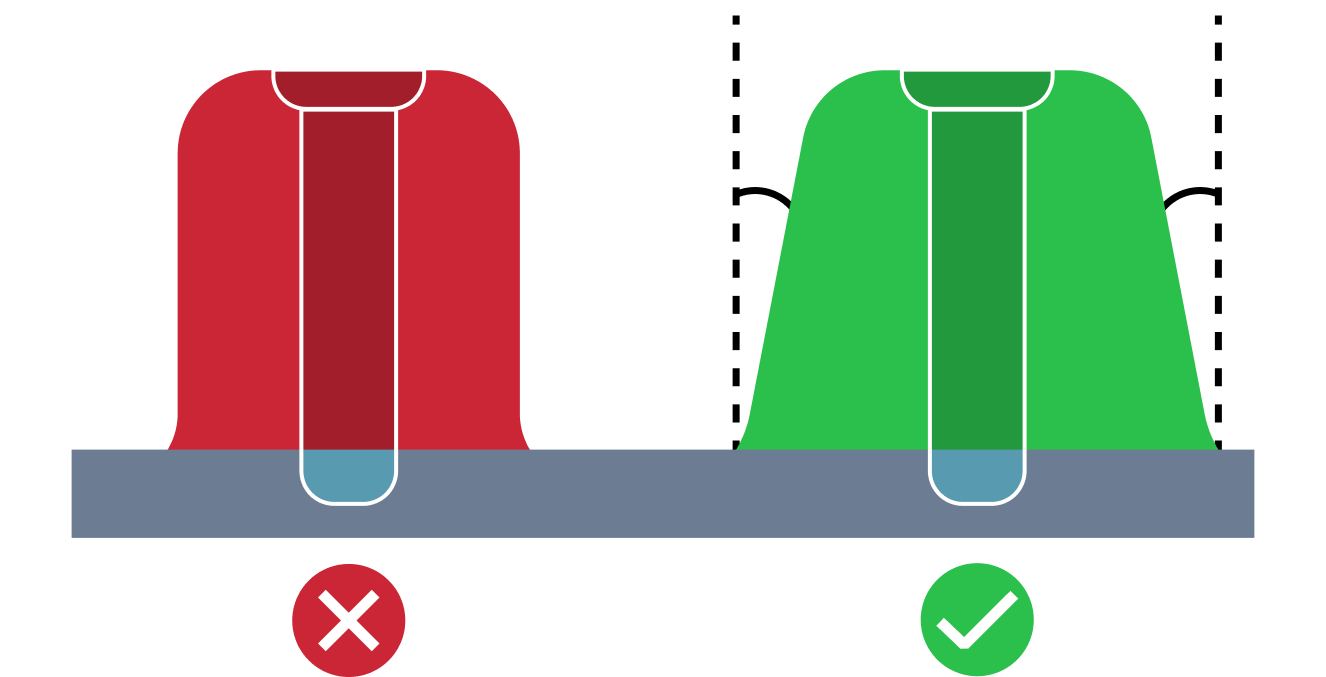

Small screw boss draft angle overview
The small screw boss draft angle issue is similar to the rib small draft angle issue. Appropriate draft angles are crucial for smooth part ejection in molding. This is essential to prevent production challenges and optimize product quality.
Small screw boss draft angle detection conditions
MTK identifies this issue when the following condition is met:
where:
- — analyzed screw boss draft angle
- — minimum screw boss draft angle
How MTK detects small screw boss draft angles
MTK automatically analyzes B-Rep CAD models for small screw boss draft angles. The SDK checks the relevant geometry against DFM criteria to identify potential issues that can increase manufacturing complexity or cost, or lead to quality or assembly problems.
Documentation and API reference
Detailed API reference for the small screw boss draft angle DFM check is provided in the MTK documentation, including issue classes, detection interfaces, and integration details.
