Ribs
Rib overview
A rib is a thin, elongated protrusion on a workpiece that imparts strength and stiffness to the structure.
Ribs are commonly employed to reinforce walls or other features of a part, preventing deformation and enhancing structural integrity.

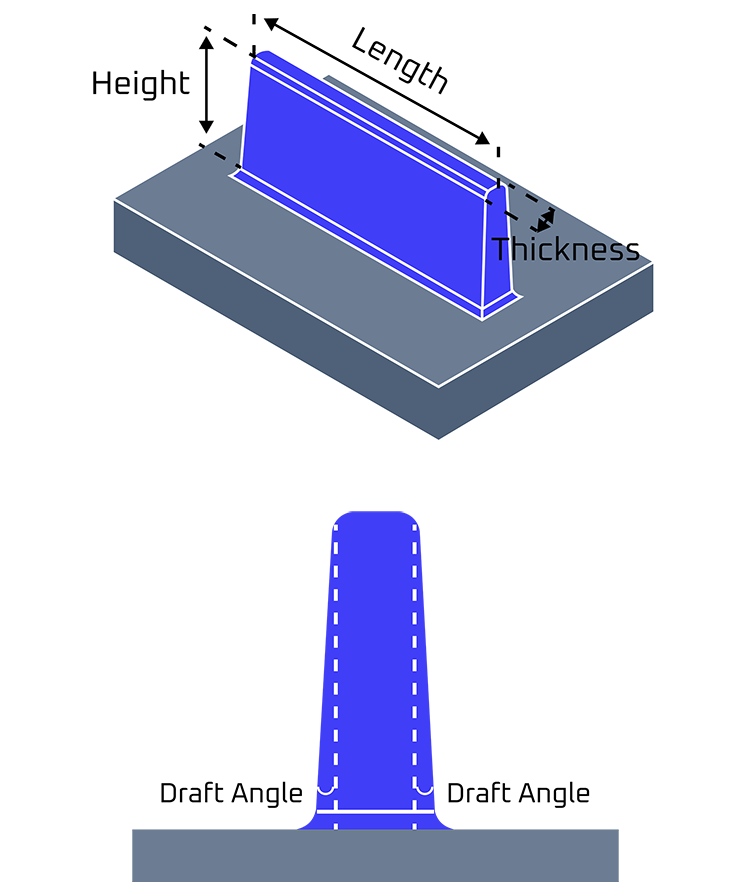

Rib parameters
A rib has the following basic parameters:
- Height.
- Length.
- Thickness.
How MTK recognizes ribs
MTK automatically recognizes ribs in B-Rep CAD models and extracts their manufacturing-relevant parameters. The recognized feature data can be used for automated quoting, DFM analysis, and manufacturing workflows.
Documentation and API reference
Detailed API reference for rib feature recognition is provided in the MTK documentation, including feature classes and integration details.
