Threaded flat bottom holes
Threaded flat bottom hole overview
A threaded flat bottom hole is a hole machined to have a flat reflecting surface at the hole bottom.

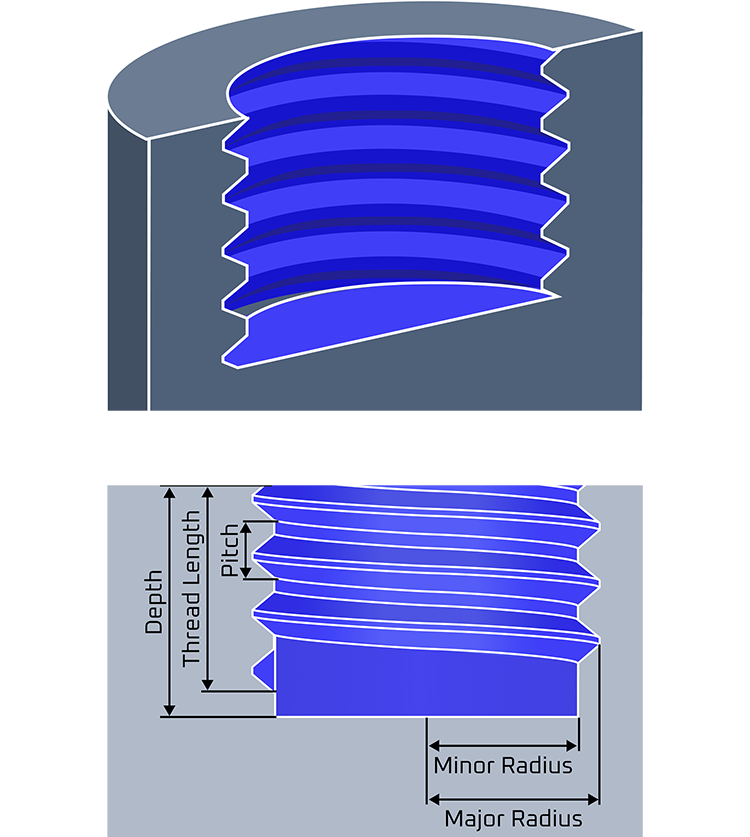

Threaded flat bottom hole parameters
A threaded flat bottom hole has the following basic parameters:
- Minor radius.
- Major radius.
- Thread length.
- Pitch.
- Depth.
How MTK recognizes threaded flat bottom holes
MTK automatically recognizes threaded flat bottom holes in B-Rep CAD models and extracts their manufacturing-relevant parameters. The recognized feature data can be used for automated quoting, DFM analysis, and manufacturing workflows.
Documentation and API reference
Detailed API reference for threaded flat bottom hole feature recognition is provided in the MTK documentation, including feature classes and integration details.
